Heat Insulation UPVC Roofing Sheets Trapeziodal Style / Colored Pvc Sheets

Ask Lasest Price
Brand Name :	yiquan
Model Number :	1130
Certification :	iso9001
Price :	$2 to $6 per sqm
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	8000 sqms per day
Delivery Time :	7 to 10 days after the payment received

Add to Cart

Product Details
Company Profile

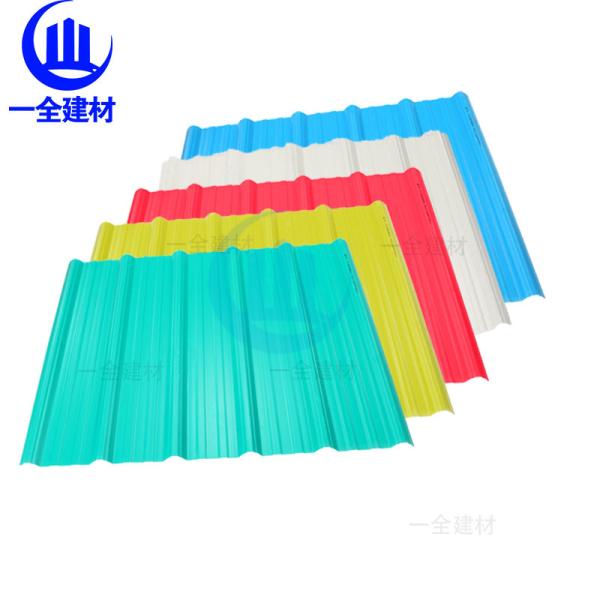

Heat Insulation UPVC Roofing Sheets Trapeziodal Style / Colored Pvc Sheets

Upvc Plastic Heat Insulation Trapeziodal Style Roofing sheets

UPVC trapeziod roof sheet as upgraded product of color steel sheet, adopts advanced co-extrusion technology and uses super weather-resistance resin and PVC as main material, mixes UV resistance and other chemical adjuvant to enhance weather ability and color durability.

Application:

widely used in agricultural trade market, passageway, residence house, temporary housing, flat to sloping, villa, sunshade, rain shade, garages, commercial buildings, train station, bus station, newsstand, sports buildings, swimming pool, outdoor playground roof etc..

Technical date:

Item	Content	Result	Standard
Environment	Pollution or environment friendly	No asbestos and Environment friendly Recycling material	GB6566-2001, A standard good for Environment
Heat distortion temperature	Under 70.0°C	No change	GB/T1634-2004
Vicat softening temperature	Under 75.2°C	No Softening	GB/T1633-2000
Hard to burn	B1 Grade	Oxygen index:35	GB/T2406-1993
Vertical Burning	FV-0	FV-0	GB/T2408-1996
horizontal Burning	FH-1	FH-1	GB/T2408-1996
Impact Resistance	no crack	0/10	GB/T8814-2004
Density	1.75-1.95	1.79	GB/T1033-1986
Corrosion-resistant	Acid (HCL,H2SO4,HNO3)5%	No change	QB/T3801-1999
Corrosion-resistant	Alkaline(NaOH)5%	No change	QB/T3801-1999

Installation:

PVC tile installation should choose appropriate purlin spacing to prevent deformation cracking.

Water leakage ,specific reference to the following:

•The thickness of the pvc roof tiles is≤1.3mm to use the purling space≤600mm.

the circular arch roof to use for the purling space≤700mm.the thickness between

1.3mm to 1.8mm of the tiles need to use for purling space ≤700mm.

the arched back roof to be ≤800mm.the thickness 1.8mm to 3mm of roof sheet to

use for the purling space as ≤800mm and circular arch style to use purling space≤900mm

•The installation of the corrugated pvc roof sheet have to cover two pitch of the sheet area on

the width and the trapezium pvc roof sheet to cover one pitch on the width and to cover >250mm on the length.

•If use tapping screw that need to drill a hole with ratio 2-3mm first.
